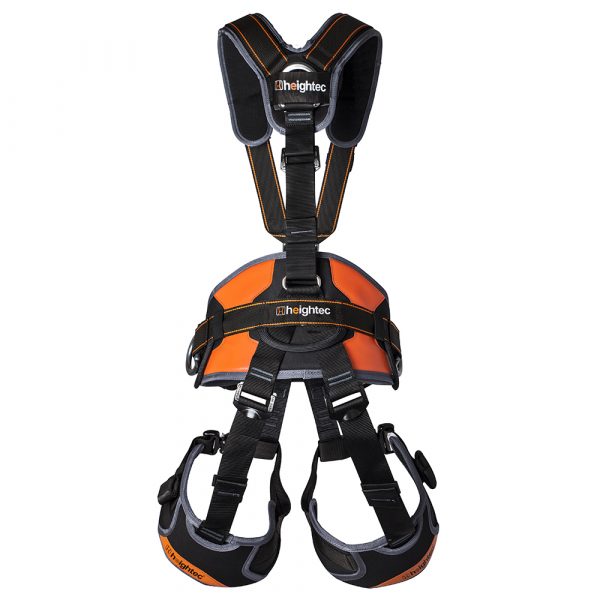

APEX – Integrated Rope Access Harness

The first harness offering an integrated yet replaceable chest ascender.

Features the EXTOL full body, quick connect rope access harness with SYNC removable chest ascender.

Learn More

Not for sale individually.

The APEX integrated rope access harness is the first harness offering an integrated yet replaceable chest ascender. Comprises of the EXTOL harness and SYNC chest ascender

The unique design increases comfort and makes ascending easier and more efficient.

EXTOL harness features:

  • Replaceable ascender
  • Connection orientates ascender close to the chest
  • Front and rear attachment points
  • Large waist D-rings for multiple attachments
  • High load rating 140kg
  • Reinforced gear loops with 20kg SWL
  • Folding side D-rings
  • Integral workseat attachment points
  • High lumbar support with shoulder, waist and leg padding
  • SafeLock™ quick connect leg buckles

The SYNC is the first ever fully removable ascender offering the performance and security of a sewn in design.

SYNC chest ascender features:

  • Offers the advantages of an integrated ascender but with the flexibility of being removable when required
  • Secure, stable and comfortable – performs like part of the harness
  • Sits tightly against the chest section for efficient ascending and supreme comfort
  • Can be fitted and removed from the EXTOL harness quickly and without the need for any tools, simply remove the harness connector and unhook the SYNC
  • Innovative attachment points secure ascender and reduce movement to an absolute minimum for optimum comfort and efficiency

Replaceable SYNC chest ascender increases usable lifespan.

Features X-Cam technology. Increased performance over traditional sharp tooth design

  • Does not jam, even against knots
  • Provides high degree of grip on ropes of varying condition including after rupture on sheath
  • Cam doesn’t pluck rope, reducing rate of rope wear

Sizes available:

  • APEX integrated rope access harness, standard – Torso 65 – 90 cm. Waist 70 – 140 cm. Thigh 60 – 80 cm
  • APEX integrated rope access harness, large – Torso 80 -105 cm. Waist 85 – 165 cm. Thigh 60 – 100 cm

Also available:

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

Commodity Code: 6307909899

Country of Origin: UK

Made in Britain Horizontal logo - Colour



D44 SYNC Ascender

Features

  • Removable ascender
  • Front and rear attachment points
  • Large waist D-rings for multiple attachments
  • High load rating 140kg
  • 20kg SWL gear loops

Specifications

Sizing: Standard, Large (Harness) / 10.5 - 12mm rope (Ascender)
Material: Polyamide, steel and aluminium.
EN Mass Test: 140kg (Harness) / 100kg (Ascender)
Loading: Fall Arrest & Rescue Loads
Weight: 2.4 kg
Conformity: EN358, EN361, EN813 (Harness) / EN 567, EN 12841(B) (Ascender)
