Aluminium rescue pulley – alloy, 5 cm

Lightweight, compact swing cheek pulley for general or personal use.

Learn More

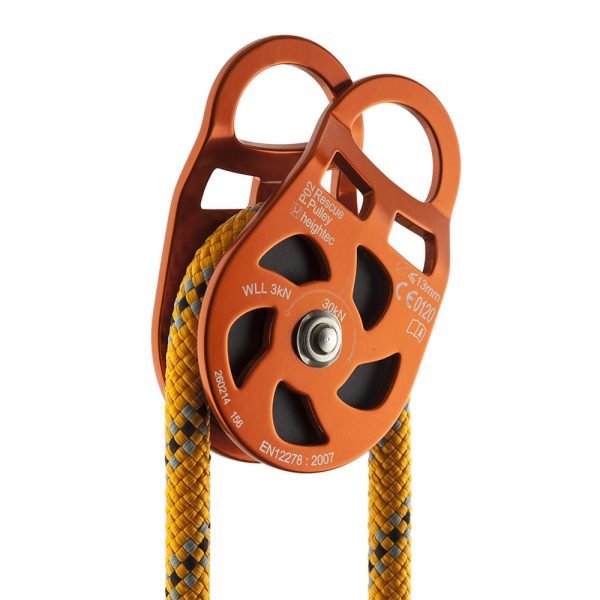

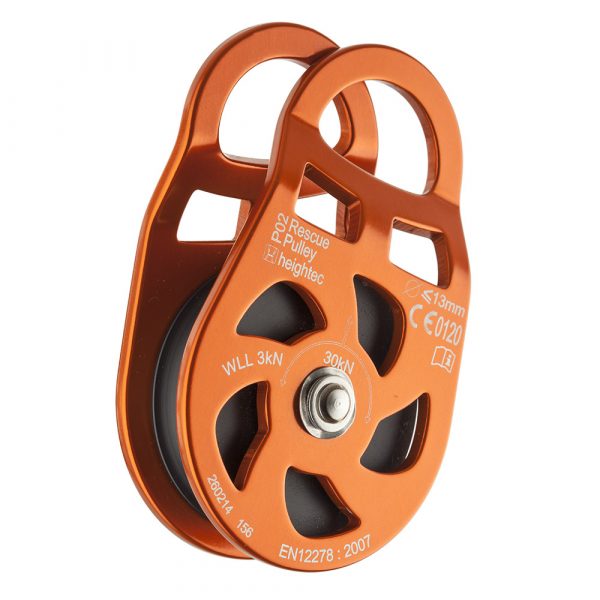

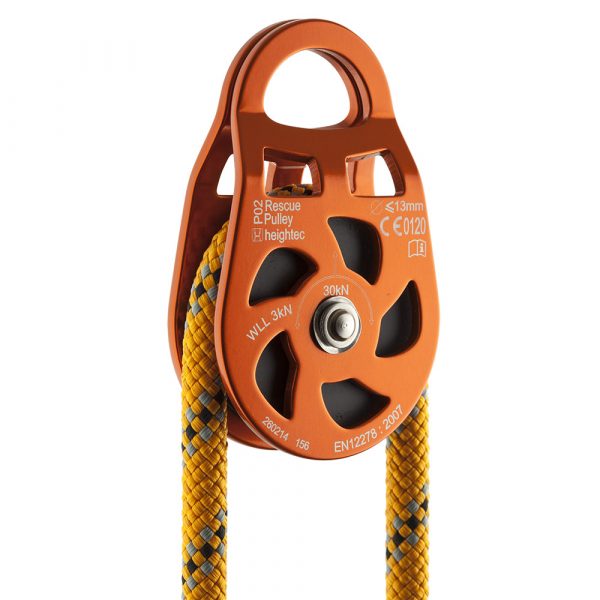

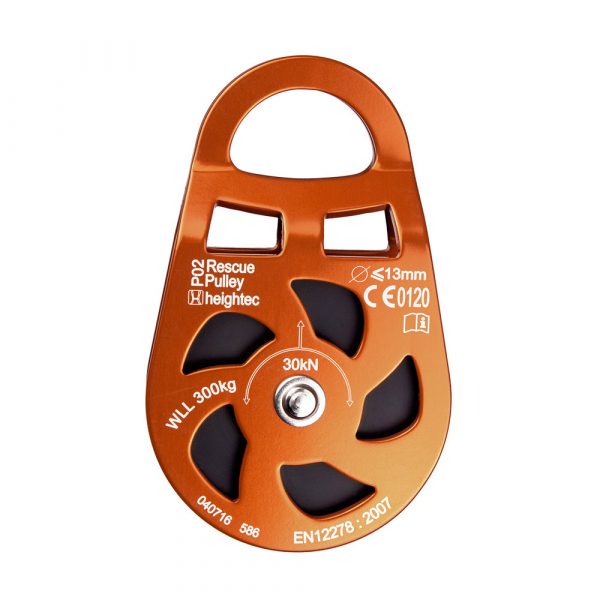

The 5 cm aluminium rescue pulley is a single sheave, rescue pulley.

Features anodised aluminium alloy side plates for corrosion resistance and nylon pulley wheel.

The aluminium rescue pulley also features wide opening swivelling plates for easy attachment to rope.

The large attachment point of the pulley can accommodate up to three connectors for complex rigging systems.

Self lubricating bearing.

The large diameter sheave of the pulley  increases the mechanical efficiency.

To use with 13 mm diameter or smaller rope.

View heightec’s full range of pulleys including the TORNADO lifting and lowering device for controlled lifting and lowering, CYCLONE heavy duty hauling pulley with a locking cam and HURRICANE rope grab with pulley – casualty recovery hauling device.

P02 rescue pulley is also a featured product in heightec’s lifting kits:

  • Basic Lifting Kit (WK52) – a complete lifting kit for hauling, designed to lift small to medium sized loads and ideally suited to the renewables, construction and telecoms industries. Also includes the CYCLONE hauling pulley.
  • Advanced Lifting and Lowering Kit (WK55) – complete kit for rigging and light lifting of small loads. Features the PRISM rope control device with hands free locking function and HURRICANE hauling device.

Commodity Code: 7616999099

Country of Origin: UK

Features

  • Room for multiple connectors in large attachment point
  • Self lubricating bearing
  • Swivel cheek
  • Large attachment point

Specifications

Sizing: Rope diameter 13mm or smaller.
Material: Aluminium
EN Mass Test: 30kN
Loading: 300 kg SWL
Weight: 0.174 kg
Conformity: EN 12278
