Rescue pulley – 5 cm

Lightweight, compact swing cheek pulley for general or personal use.

Learn More

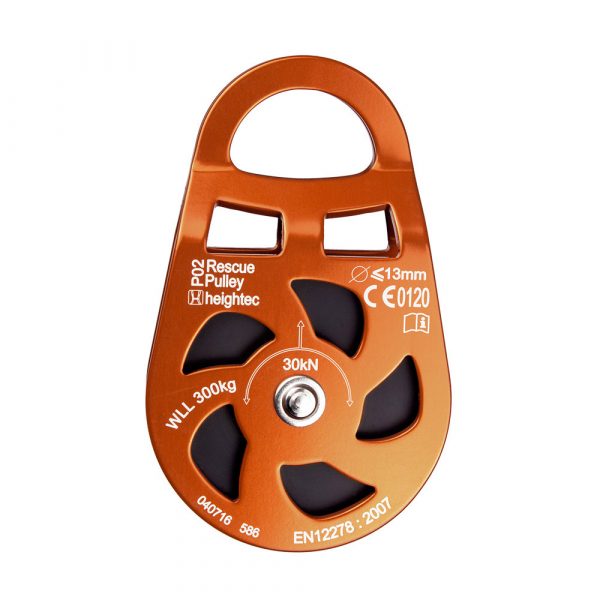

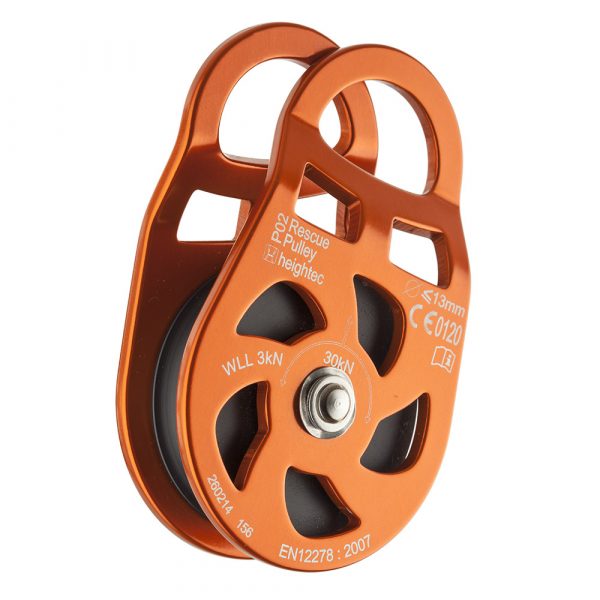

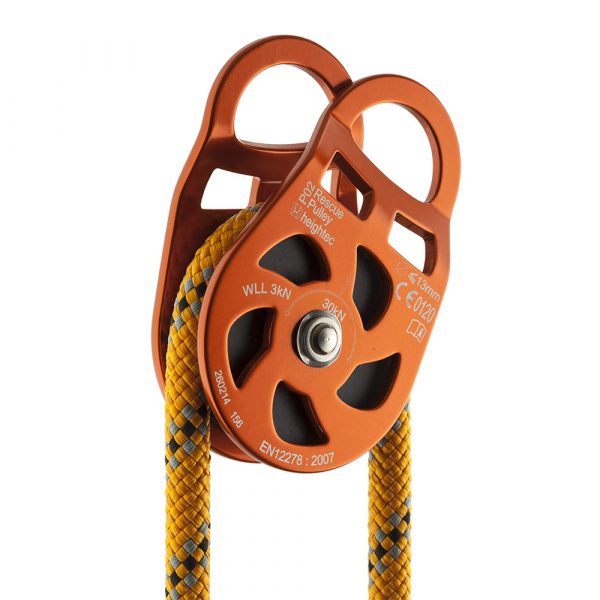

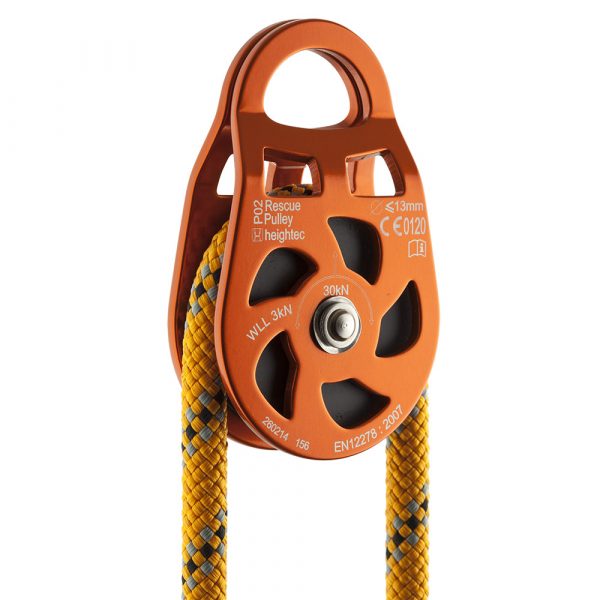

The 5 cm aluminium rescue pulley is a single sheave, rescue pulley.

Features anodised aluminium alloy side plates for corrosion resistance and nylon pulley wheel.

The aluminium rescue pulley also features wide opening swivelling plates for easy attachment to rope.

The large attachment point of the pulley can accommodate up to three connectors for complex rigging systems.

Self lubricating bearing.

The large diameter sheave of the pulley  increases the mechanical efficiency.

To use with 13 mm diameter or smaller rope.

View heightec’s full range of pulleys including the CYCLONE heavy duty hauling pulley with a locking cam and HURRICANE rope clamp with pulley – casualty recovery hauling device.

P02 rescue pulley is also a featured product in heightec’s lifting kits:

  • Lifting and Lowering Kit (WK52) – a complete lifting kit for hauling, designed to lift small to medium sized loads and ideally suited to the renewables, construction and telecoms industries. Also includes the CYCLONE hauling pulley.
  • Advanced Lifting and Lowering Kit (RescueHauler) – a comprehensive kit allowing multiple configurations for lifting, lowering and directing loads. Features the NEW RescueHauler rope control device. Provides a hands free progress capture (locking), and friction control (lowering) function and can be changed from lift to lower whilst under load.

You may also like:

DUON-Air technical safety helmet is the first helmet to offer dual switchable conformity EN 397 – Industrial & EN 12492 Climbing. The DUON features a unique chinstrap buckle with variable fastening strength, allowing wearers to be fully compliant in complex environments containing different and changing hazards.

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

Commodity Code: 7616999099

Country of Origin: UK

Made in Britain Horizontal logo - Colour


  • Room for multiple connectors in large attachment point
  • Self lubricating bearing
  • Swivel cheek
  • Large attachment point


Sizing: Rope diameter 13mm or smaller.
Material: Aluminium
EN Mass Test: 30kN
Loading: 300 kg SWL
Weight: 0.174 kg
Conformity: EN 12278
