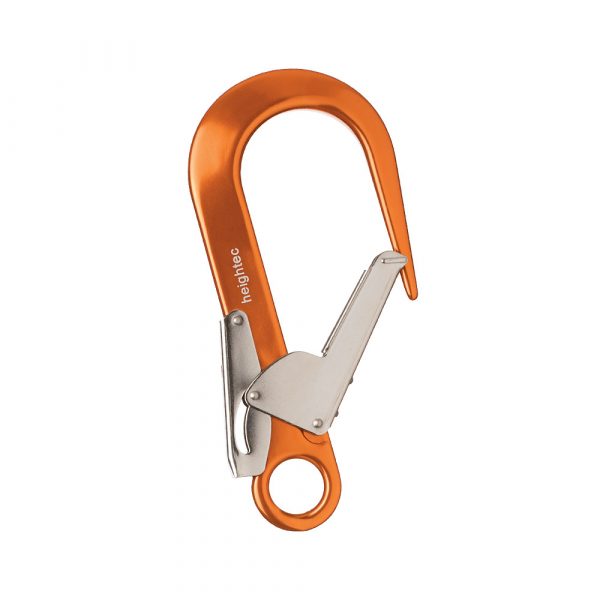

Alloy scaffold hook

Aluminium alloy hook with wide opening and double action gate.

NB: For connector to be individually marked with heightec issued serial numbers, please add 1 YLASERH to basket for each connector required.

Learn More
Alloy Scaffold hook

Alloy Scaffold Hook with double action stainless steel gate.

Aluminium alloy construction for reduced weight.

The alloy scaffold hook is anodised for corrosion protection.

Stainless steel gate for increased strength and durability.

Double action gate is self closing and locking and allows one handed operation.

Captive eye keeps the loading close to the spine (thus reducing any loss in strength) and helps ensure correct load orientation.

The scaffold hook also features a 62 mm gate opening.

heightec’s alloy scaffold hook is a core component of the ELITE twin lanyards with integral suspension intolerance relief footloop. Deploys automatically providing support for both feet. heightec ELITE lanyards are the only lanyards on the market with an automatically deploying footloop.

Also available with modified gate for rescue. Please see Alloy scaffold hook with rescue safety lock (CH01AM). Special gate modification prevents incorrect attachment to the casualty when used with rescue reach pole (MSRM). Without the modification, the hook can easily cross load which reduces the strength significantly.

View heightec’s full range of Specialist Connectors including the Transfer Lanyard Connector and the double action alloy krab.

Alloy karabiners, steel karabiners and screwlinks are also available.

NB: For connector to be individually marked with heightec issued serial numbers, please add 1 YLASERH to basket for each connector required. For bespoke marking and branding, please contact us

Commodity Code: 7616999099

Country of Origin: Taiwan

Features

  • Main body anodised aluminium alloy
  • Gate stainless steel
  • Double action gate
  • Gate opening: 62 mm
  • Overall size: L 238 mm, W 114 mm
  • Captive eye

Specifications

Sizing: L 238mm, W 114mm
Material: Aluminium body, stainless steel gate
Loading: 22kN major axis
Weight: 0.5 kg
Conformity: EN 362:2004/A
