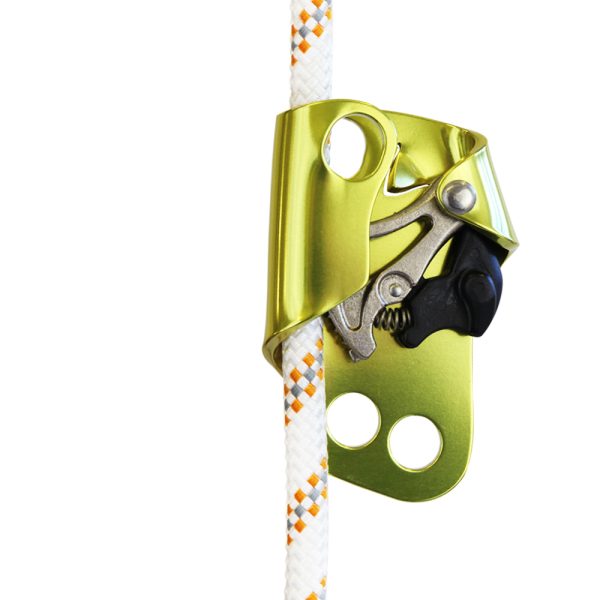

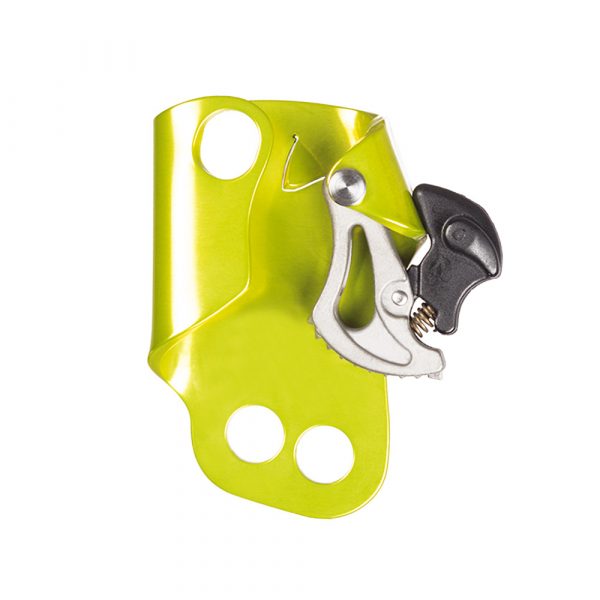

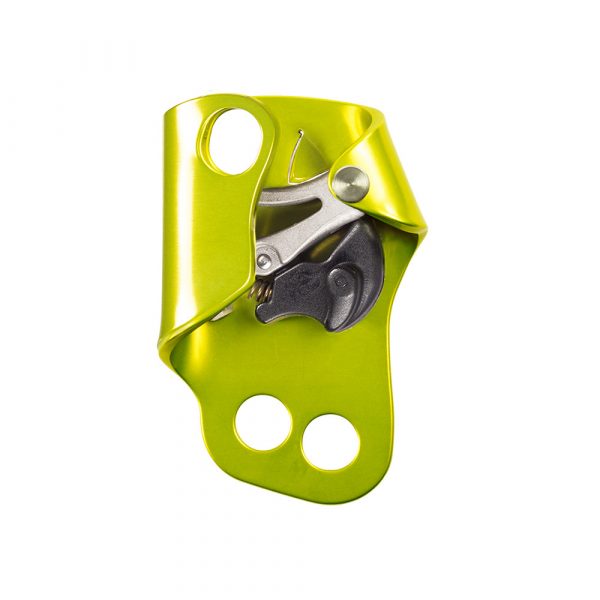

COMPACT Basic Ascender – X-cam

Ideal as spare ascender or use in hauling and rescue systems, incorporating X-Cam.

Learn More

X-Cam is a completely new basic ascender cam design, which gives a considerable increase in performance over traditional sharp toothed models.

For use with 8 – 13mm diameter rope

When tested on new Tectra 11 mm low stretch rope, our X-Cam ascenders were found to be 25% stronger than their most popular sharp toothed competitor, with average breaking loads up to 875 kg for X-cams versus 535 kg for the established design.

However, the greatest increase in performance is exhibited if this compact basic ascender continues to be loaded after the sheath of the rope has ruptured. In this situation, X-Cams will hold up to 200 kg on the broken sheath and rope cores. Established toothed designs supported only around 30kg in heightec tests – nowhere near enough to support a person.

heightec X-Cam COMPACT basic ascender rope access device therefore significantly reduce the possibility of complete system failure by exerting a considerable hold on a rope after the sheath has broken.

Features

  • Small compact size
  • One upper attachment point for versatility
  • Two lower attachment points to separate lanyard and footloop
  • Ideal as spare ascender or use in hauling and rescue systems

Specifications

Sizing: Rope diameter 8mm -13mm.
Material: Alloy body, Steel cam
EN Mass Test: 125 kg
Loading: 125 kg
Weight: 0.17 kg
Conformity: EN 567, EN12481B
