RescuePack ROTOR WTG ProSeal rescue system – configured to meet the demanding requirements of the renewables sector and is now available with our new ProSeal storage solution which protects against degradation prolonging the life of the equipment.
The rescue system is used for vertical rescues, self-evacuation or recovery of a casualty from tall structures, including wind turbines and can lift and lower at any point even under load.
The system is fully rated for 2 person descent and supplied in a robust, sealed protective aluminium case for ease of storage and transportation which incorporates our ProSeal storage solution.
All contents are protected with a padded case lining, with inspection instructions included.
At the core of the wind turbine rescue system is the ROTOR rescue and evacuation descender, an intuitive device which allows self-evacuation automatically limited maximum descent speed or controlled lowering or raising of a casualty. The ROTOR can control rope speed in either direction, meaning that repeated descents can be carried out in quick succession.
High rated load with long descent distance:
Load Max. descent distance Descent speed
140 kg 4500 m 0.7 m/s
200 kg 500 m 1.0 m/s
250 kg 220 m 1.7 m/s
The ROTOR can also lift in either direction using the ratchet handle supplied. With the locking mechanism engaged the load is held if the handle is released. The ROTOR can change from lift to lower (and vice versa) at any point whilst under load.
Included within the kit is an edge protector constructed of durable stainless steel for corrosion resistance for exposed locations.
The rescue system is supplied in a robust protective case.
ProSeal is a simple, tough storage method for equipment that needs robust protection during long term storage, to guarantee the quality and functionality of rescue and evacuation equipment.
- Total protection
- Guaranteed functionality
- 10 year lifespan
- Complete peace of mind
ProSeal is ideally suited for equipment that requires a robust method of long term storage whilst maintaining the condition of the equipment.
- Multiple protective layers ensure perfect storage conditions
- Fully protected against damage – durable barrier bag and outer protective storage container
- Supremely simple inspection – quick and easy process without removing kit from site
Protects against degradation prolonging the life of the equipment.
ProSeal Inspection Process

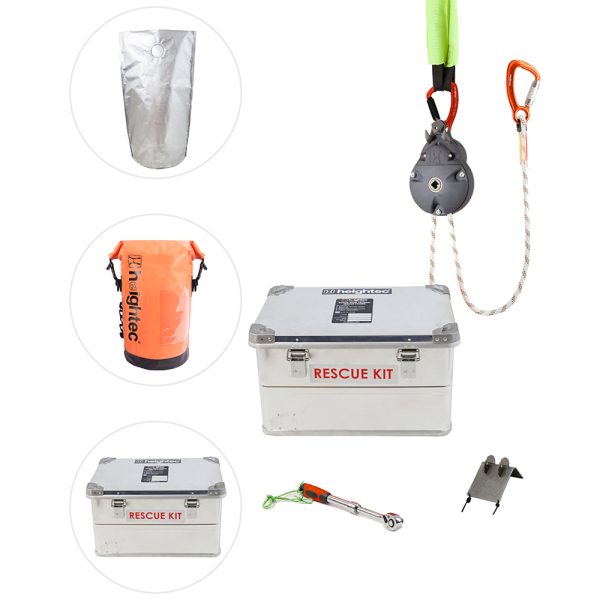

Components:
- ROTOR descender
- ProSeal Storage system
- COMPACT ascender
- Pulley, 5 cm
- Anchor strops 7 mm, steel, 1 m
- Sling, nylon, protected 60 cm
- Karabiners
- Edge protector, stainless steel
- Protective aluminium case
Lengths available: in 50 m, 60 m, 100 m lengths
Patented GB 2 515 341
Also Available:
Commodity Code: N/A
Country of Origin: UK
NB: Approved for use in the UK only.
