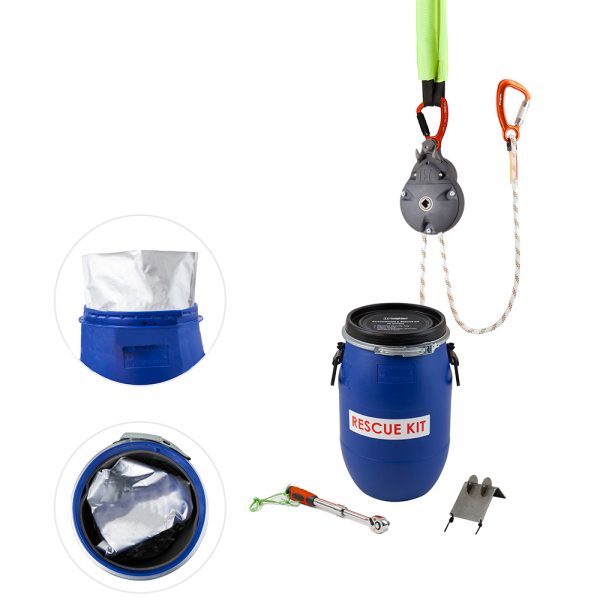

RescuePack ROTOR WTG Rescue System with ProSeal

RescuePack WTG rescue system supplied in ProSeal 10 year storage system.

For vertical rescues,  self-evacuation or recovery of a casualty from tall structures, including wind turbines, with multiple evacuee capability.

ProSeal protects against degradation prolonging the life of the equipment.

Learn More

heightec’s RescuePack ROTOR WTG ProSeal Rescue System has been configured to meet the demanding requirements of the renewables sector and is now available with our new ProSeal storage solution.

The rescue system is used for vertical rescues, self-evacuation or recovery of a casualty from tall structures, including wind turbines and can lift and lower at any point even under load.

The system is fully rated for 2 person descent and supplied in a barrel for ease of storage and transportation which incorporates our ProSeal storage solution.

At the core of the wind turbine rescue system is the ROTOR rescue and evacuation descender, an intuitive device which allows self-evacuation automatically limited maximum descent speed or controlled lowering or raising of a casualty. The ROTOR can control rope speed in either direction, meaning that repeated descents can be carried out in quick succession.

High rated load with long descent distance:

Load           Max. descent distance           Descent speed
140 kg                4500 m                                   0.7 m/s
200 kg                500 m                                     1.0 m/s
250 kg                220 m                                     1.7 m/s

The ROTOR can lift in either direction using the ratchet handle supplied. With the locking mechanism engaged, the load is held if the handle is released. The ROTOR can change from lift to lower (and vice versa) at any point whilst under load.

Included within the kit is an edge protector constructed of durable stainless steel for corrosion resistance for exposed locations.

The rescue system is supplied in a robust protective barrel case.

PROSEAL

ProSeal is a simple, tough storage method for equipment that needs robust protection during long term storage, to guarantee the quality and functionality of rescue and evacuation equipment.

  • Total protection
  • Guaranteed functionality
  • 10 year lifespan
  • Complete peace of mind

ProSeal is ideally suited for equipment that requires a robust method of long term storage whilst maintaining the condition of the equipment.

  • Multiple protective layers ensure perfect storage conditions
  • Fully protected against damage – durable barrier bag and outer protective storage container
  • Supremely simple inspection – quick and easy process without removing kit from site

Protects against degradation prolonging the life of the equipment.

  ProSeal inspection process



Components:

Lengths available: 50m, 60m, 100m lengths

Weights: 11.6kg, 12.3kg, 15.1kg, respectively

Patented GB 2 515 341

Also Available:

Commodity Code: N/A

Country of Origin: UK

Made in Britain Horizontal logo - Colour

Rescue and Evacuation Systems

Features

ROTOR rescue device
  • high load rating
  • unique integral load indicator
  • no external moving parts
  • lowering and lifting capability
  • manual or automatic operation
  • completely intuitive
  • low profile body design
ProSeal storage system
  • Complete peace of mind
  • Multiple protective layers ensure perfect storage conditions
  • Fully protected against damage – durable barrier bag and outer protective storage container
  • Supremely simple inspection – quick and easy process without removing kit from site

Specifications

Sizing: Available in 50m, 60m, 100m lengths
Material: Polyamide, polyester, aluminium, stainless steel, galvanised steel, HDPE, EPDM
EN Mass Test: 140/250kg
Loading: max. rated load 140kg (lift), max. rescue load 250kg (descent)
Weight: 15.5 kg
Conformity: Various EN Approvals
