Pear Steel Screwlink

For rigging multiple connections in anchor lines or pulley systems

Learn More

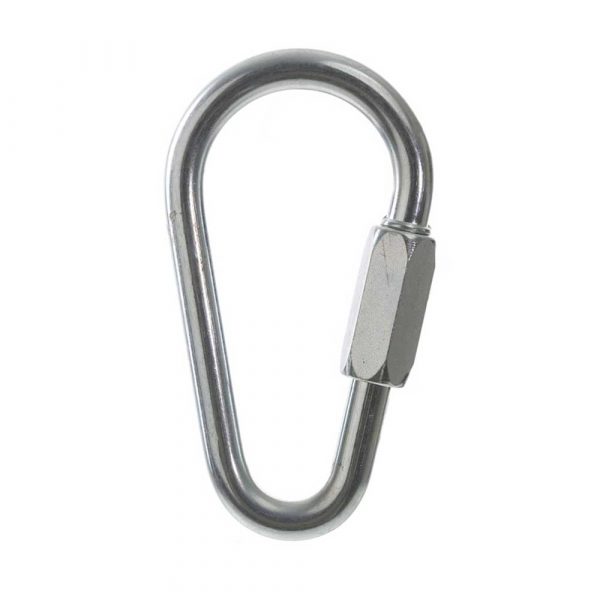

CSP10 Pear Steel Screwlink

Pear shaped steel screwlink connector used to attach rope device in a variety of rescue systems.

This 30 kN (major axis) Pear Steel Screwlink allows several connections to be made simultaneously.

It is most useful for rigging pulley systems where twin pulleys are not available and single pulleys must be attached side by side.

It is essential to ensure the screw barrel is fully closed during use.

Large opening of 22 mm.

This pear screwlink is also a featured product in heightec’s rescue kits:

  • RescuePack TC Tower Crane Rescue System – a self contained rescue system for recovery of a fallen person or casualty from a tower crane, cab, jib or ladder by lifting and lowering. Designed to rescue a fallen person or casualty at high elevation who is unable to help themselves. The heightec ROTOR constant rate descender with lifting capability and maximum speed limiter.
  • RescuePack Pro – Technical rescue system for fire service and professional rescue teams – multi function with lowering, raising and rescuer safety capabilities. RescuePack™ Pro is a unique and completely self-contained industrial rescue system. It has been developed with and is extensively used by UK Fire Services and other industrial rescue teams.
  • TowerPack Rescue System (standard kit without VANTAGE Rescue Pulley)
  • TowerPack Pro Rescue System with VANTAGE rescue pulley system. Suitable for both no-cut (lift) and conventional cut rescue methods.

You may also like:

DUON-Air technical safety helmet is the first helmet to offer dual switchable conformity EN 397 – Industrial & EN 12492 Climbing. The DUON features a unique chinstrap buckle with variable fastening strength, allowing wearers to be fully compliant in complex environments containing different and changing hazards.

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

Commodity Code: 7326909890

Country of Origin: France


  • High strength steel
  • Pear shaped
  • Large opening of 22 mm


Sizing: 10mm bar. 20mm opening. Overall size 115x65mm
Material: Zinc plated steel
Loading: 30kN major axis, 10kN minor axis MBL
Weight: 0.184 kg
Conformity: EN362, EN12275
