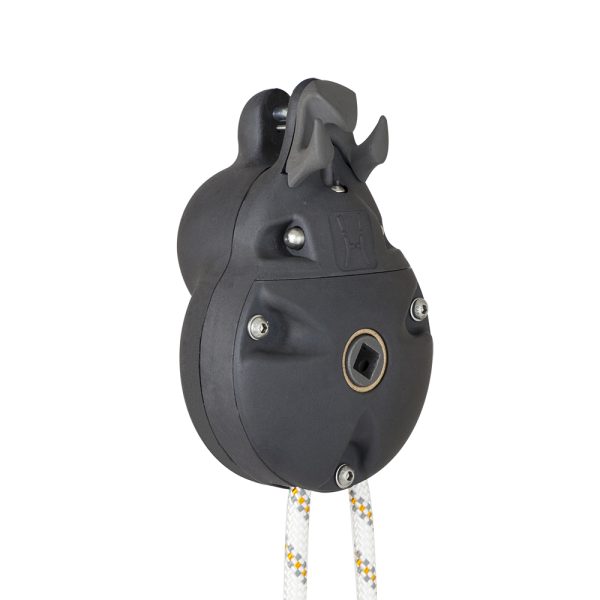

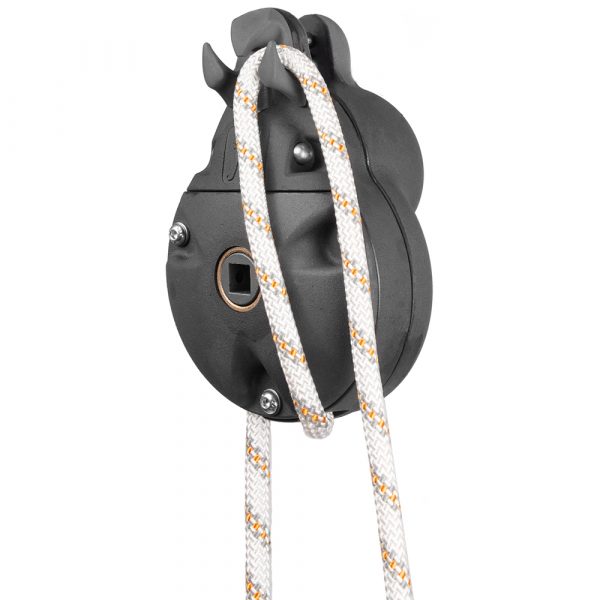

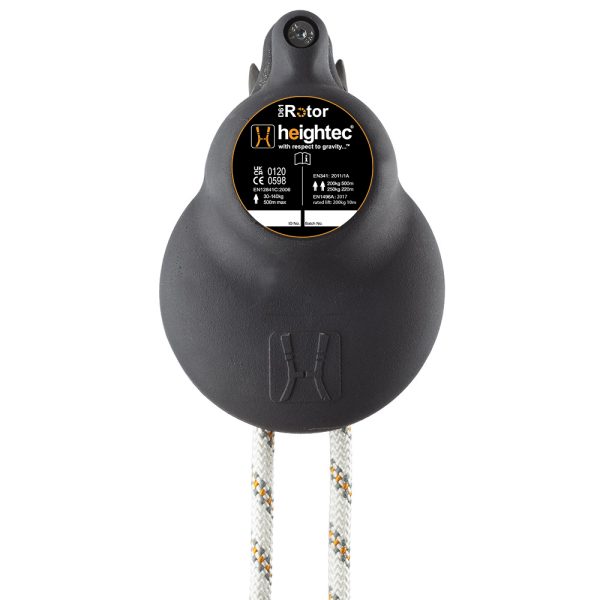

ROTOR Automatic Rescue and Evacuation Descender

The ultimate high performance rescue descender for self-evacuation or casualty recovery from tall structures, including wind turbines, tower cranes,

  • Unique robust design, developed for the most demanding environments.
  • Total durability with 10+ year lifespan, fully sealed internal mechanism and minimal maintenance.
  • Complete safety with lowering & lifting capability, high load rating and integral load indicator.
Learn More

Not for sale individually.

The ROTOR rescue and evacuation descender is designed for raising, lowering and evacuation, with multiple evacuee capability.

It is simple and intuitive to use, incorporating a range of operation and safety features to aid users.

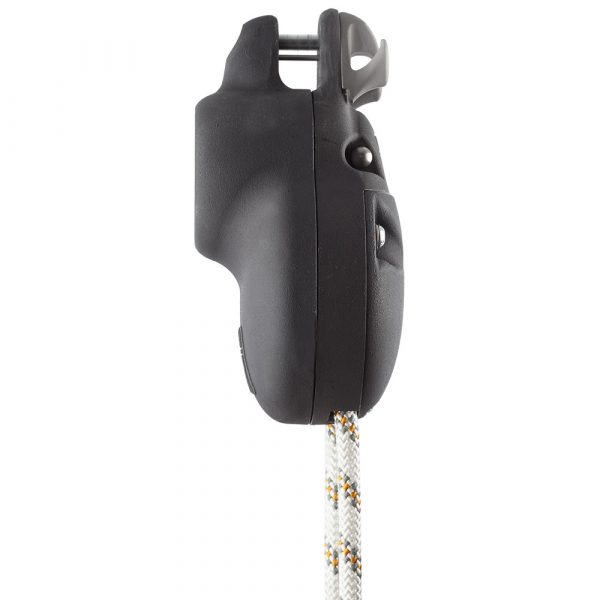

The ROTOR has a low profile body with no external moving parts preventing the risk of snagging which could interrupt the descent.

The ROTOR rescue and evacuation descender features attachment load point indicator that shows if device has been used.

The device has push button mode selection for lifting or lowering in either direction – central neutral position for lowering, left/right position for lifting mode.

When set in lowering/evacuation mode, descent is automatic. Friction points can be used to provider additional control for lowering a casualty.

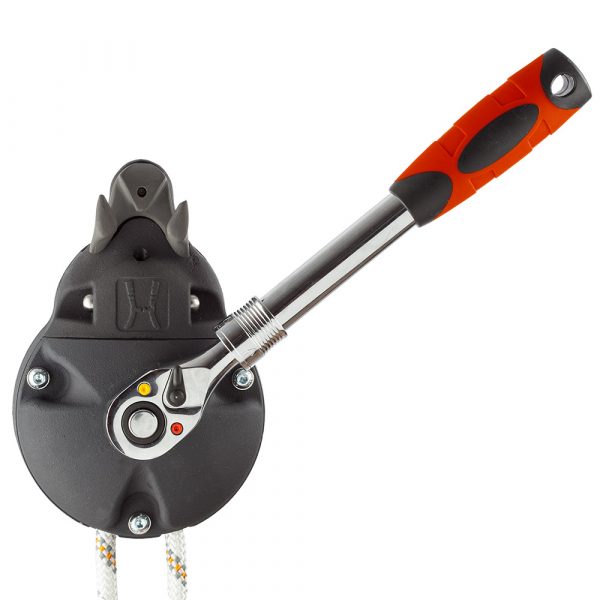

Detachable ratchet handle is used to lift in either direction. Ratchet locking mechanism holds the load if the handle is released.

Locking mechanism is engaged by simple push button, which is recessed to protect against accidental operation. ‘Free running’ position can be engaged for evacuation /descent use.

Automatically controls descent speed to between 0.7 m/s and 1.7 m/s, depending on load, without the need for manual operation.

High rated load with long descent distance:

Load           Max. descent distance           Descent speed
140 kg                4500 m                                   0.7 m/s
200 kg                500 m                                     1.0 m/s
250 kg                220 m                                     1.7 m/s

Maximum descent load (rescue) 250 kg.

Maximum lifting load 200 kg.

Supplied fitted with 9.5 mm rope giving 10:1 safety factor with 250 kg. Maximum rope length 500 m.

Device can be attached to an anchor point (passive) or direct to the user harness (active).

The ROTOR device is not subject to a specific lifetime, however it must be serviced and replacement rope fitted every 10 years. Full service support available.

Internal mechanism is fully sealed against the ingress of water or other contaminants ensuring the device functions correctly after long periods of storage.

The ROTOR is integral to our rescue systems listed below and can be available in variable rope lengths:

Not for sale individually – Component part of ROTOR rescue systems – see related products.

Patented GB 2 515 341

Commodity Code: 7326909890

Country of Origin: UK

Advanced Resce

Features

  • Fully sealed
  • High load rating
  • Unique integral load indicator
  • Low profile body design
  • No external moving parts
  • Lowering and lifting capability
  • Manual or automatic operation
  • Completely intuitive

Specifications

Sizing: 20 x 13 x 10cm (plus rope)
Material: Aluminium body and stainless steel components
EN Mass Test: 140 kg/200 kg/250kg
Loading: 140kg personal descender, max. rescue load lift 250kg, max rescue load descent 250kg.
Weight: 2.881 kg
Conformity: EN341 1A, EN 1496 A, CE EN12841 C
