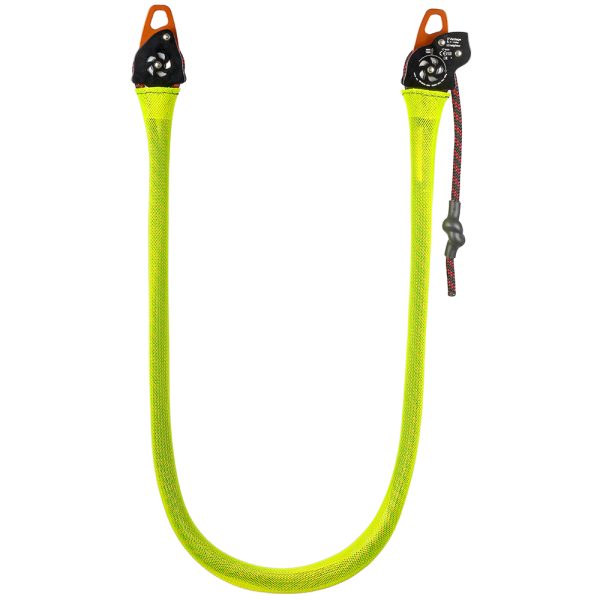

VANTAGE 5:1 Locking Casualty Pulley

For transferring a casualty onto a rescue system without cutting connections.

Learn More
P10 Vantage casualty pulley

The VANTAGE 5:1 locking pulley is for transferring a casualty onto a rescue system without cutting connections.

The pulley is extremely simple and intuitive to operate and offers a strong, light, tangle free method of lifting and transferring a casualty.

The cam automatically locks allowing simple and safe rescue procedures to be carried out.

The VANTAGE offers 5:1 mechanical advantage if rigged (tail end is attached at the load being lifted).

The woven sheath material is flexible yet highly compressible which prevents snagging and tangling between cord or pulleys, unlike similar products using mesh.

The sheath also provides  providing cut/abrasion resistance.

All components of the VANTAGE 5:1 locking casualty pulley are approved as PPE. Functions as a secure single attachment so there is no need for an additional ‘rated’ connection.

Automatic locking allow efficient progress capture during rescue. The cam does not lock open, removing the risk of accidentally releasing the load.

8mm cord gives good grip for hauling. 1.5m length allows full arms length reach without excessive slack.

The VANTAGE can be used in a TOWERPACK rescue system, 5:1 mechanical advantage enables rescuer to easily off-weight a casualty onto a rescue system

Commodity Code: 5607501190

Country of Origin: UK

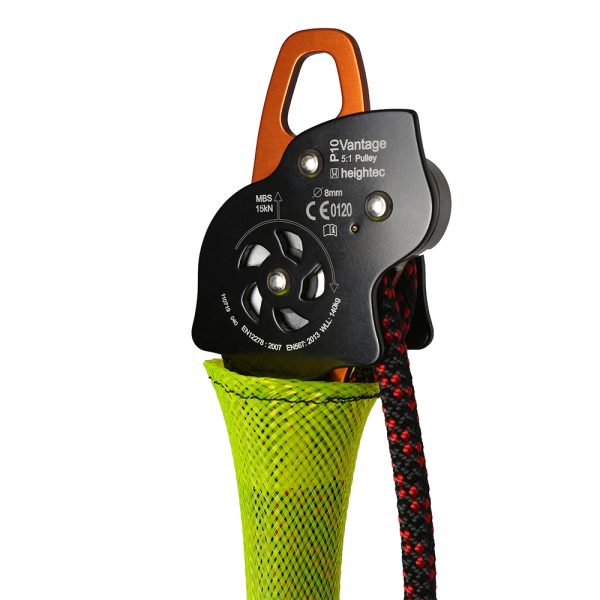

P10 Vantage 5:1 Casualty Transfer Pulley

Features

  • 5:1 mechanical advantage
  • Cut resistant sheath
  • Cam locks automatically
  • 8 mm cord

Specifications

Sizing: 1.5m max.
Material: Alloy, Stainless steel and nylon
EN Mass Test: 140kg
Loading: SWL 140kg
Weight: 0.65 kg
Conformity: EN567, EN12278, EN564
