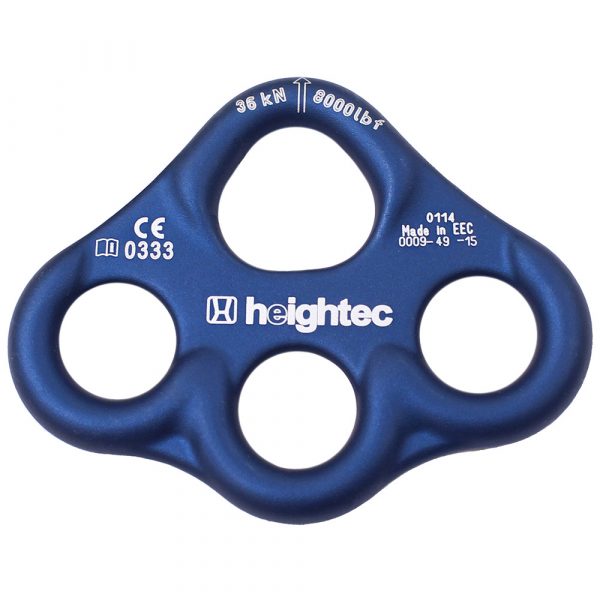

AR02 Rigging Plate small

Small alloy rigging plate with large single attachment point and three small attachment points.

The forged construction gives high strength with reduced weight.

Single multi attachment pints, simplifies rigging with multiple anchors.

Single main attachment point – accepts up to three karabiners.

Three subsidiary attachment points – 20 mm diameter for single karabiners.

Rigging Plate Size: 10 cm x 8 cm.

Commodity Code: 7616999099

Country of Origin: Italy

Also Available:

heightec have a wide selection of TECTRA™ rope for all work at height and rescue – visit Rope for more details.

The DUON-Air vented helmet offers ultimate head protection for all work at height industries. The vented safety helmet features a unique chinstrap buckle with variable fastening power allowing users to be fully compliant in complex environments containing different, changing hazards. The first height safety helmet to fully conform to European Standard requirements for industrial and climbing situations.

Critical Injury Pack is now specified as part of the recommended first aid provision for all high risk environments under the Mast & Tower Safety Group (MATS) First Aid For Working At Height Guidance (GN-009).

Work at Height First Aid Pack – a portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, a zip around opening and a robust carry handle with attachment loop for clipping to a harness.

heightec also manufacture a wide range of rope protection products including:

  • GRATEMATE GRN rope protector for metal or composite grating (MR63)
  • SENTINEL Chainmail Rope Protector (MR705)
  • CASCADE Edge Protector (MR75)
  • DURA Heavy Duty Rope Protector (MR80)
  • TORRENT Edge Pad (MR85). Multi layered edge pad. The inner padded layer protects against abrasion and smooths rough edges e.g. stone or concrete.
  • MANTLE (MRP05/MRP10). Canvas rope protector suitable for abrasive blunt edges.

Features

  • 30 kN MBL
  • Single main attachment point
  • Three further attachment points

Specifications

Material: Alloy
Loading: 30 kN MBL
Weight: 0.092 kg
Conformity: Non PPE
