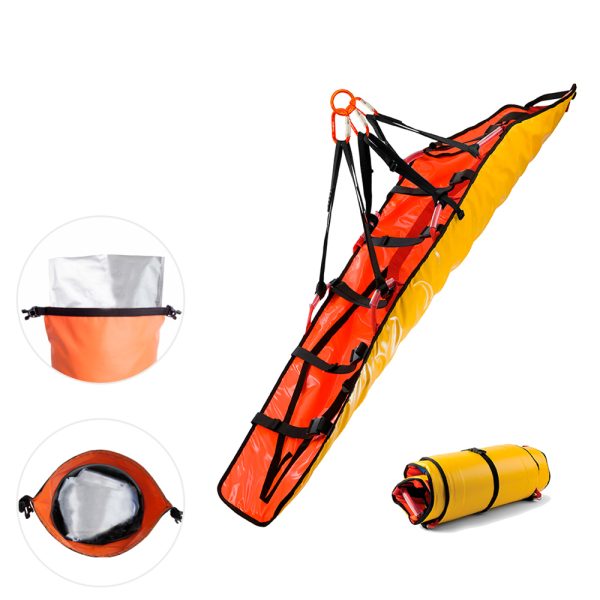

CHRYSALIS Rescue Stretcher with ProSeal

First and only hermetically sealed stretcher. Versatile rescue stretcher supplied in ProSeal 20 year storage system.

Roll stretcher with unique integral casualty harness. For both horizontal and vertical lifting for rescue from a wide range of confined, exposed or high locations.

Protects against degradation prolonging the life of the equipment up to 20 years and enables a supremely simple method of inspection.

Learn More

The CHRYSALIS rescue stretcher can be used for both horizontal and vertical lifting for rescue from a wide range of confined, exposed or high locations.

Supplied with ProSeal which protects against degradation prolonging the life of the equipment up to 20 years and enables a supremely simple method of inspection.

Compatible with spine boards, can be placed on or within the stretcher.

Unique to the Chrysalis is the integral body harness which conforms to the dynamic performance requirements of EN 361 (full body fall arrest harness) with 140 kg mass. Once employed the integral harness is always connected to the lifting points whether in horizontal or vertical lift for complete casualty security.

Metal lifting bridle attachment enables rescuer connection without risk of bridle damage.

Optimised for marine environments to avoid long term degradation inherent in typical storage conditions.

Made from reinforced coated fabric which gives unbeatable weight to strength. The full body casualty harness provides an unrivalled combination of fit, comfort and strength. Quick buckle system means using the harness is fast and simple.

Outer case design has high abrasion resistance and high visibility aids protection of the casualty. The bright colours aid use in low light conditions. The tough fabric construction resists abrasion and water ingress and can be washed down after use for infection control.

Tested with 4 m fall with a test mass of 140 kg. For static vertical and horizontal lifting, SWL of 260 kg, based on a Factor of Safety of 10:1.

The casualty rescue stretcher has six patient restraint straps with quick connect buckles to ensure the casualty is kept secure as well as one head restraint system.  The integral harness is fitted with two quick connect buckles and can be adjusted with one hand.  The retaining straps are aligned for rapid fastening in an emergency situation.

Lays flat to minimise movement of casualty when fitting. Adjustable foot stirrup and head strap can be fitted once the casualty is secure.

The plastic internal sheet can be removed to enable the stretcher to be machine washed.

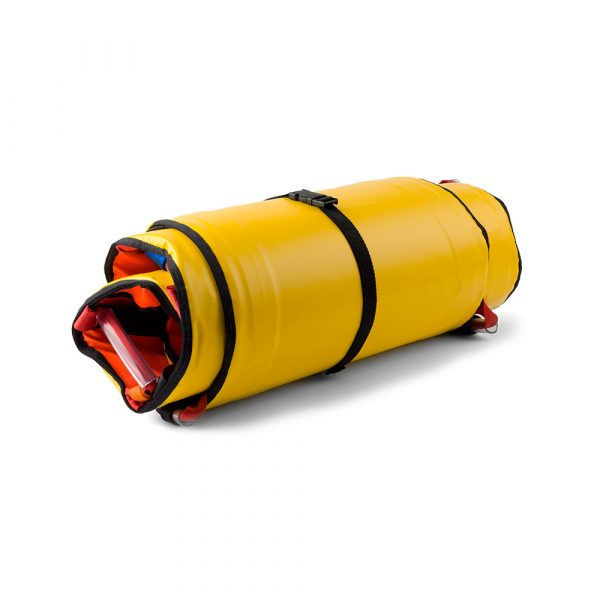

The stretcher rolls up for compact storage and easy of transportation and is supplied using ProSeal system within the KARI 50 storage bag.

Replacement Stretcher Bridle available to purchase separately.

Product registered with the UK Competent Authority, MHRA, Class 1 Medical Device.

PROSEAL

ProSeal is a simple, tough storage method for equipment that needs robust protection during long term storage, to guarantee the quality and functionality of rescue and evacuation equipment.

  • Total protection
  • Guaranteed functionality
  • 20 year lifespan
  • Complete peace of mind

ProSeal is ideally suited for equipment that requires a robust method of long term storage whilst maintaining the condition of the equipment.

  • Multiple protective layers ensure perfect storage conditions
  • Fully protected against damage – durable barrier bag and outer protective storage container
  • Supremely simple inspection – quick and easy process without removing kit from site

Protects against degradation prolonging the life of the equipment.

  ProSeal Storage Solution



Other Specialist Rescue Equipment:

  • PLANA Spine Board for additional stretcher rigidity and protection or casualty immobilisation.
  • TELSON Drag Stretcher (MS05) 3/4 length steel rescue stretcher for confined space
  • QUADPOD (ATR4) high strength portable anchors
  • A Critical Injury Pack is now specified as part of the recommended first aid provision for all high risk environments under the Mast & Tower Safety Group (MATS) First Aid For Working At Height Guidance (GN-009).
  • Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

Commodity Code: 6307909899

Country of Origin: UK

Made in Britain Horizontal logo - Colour

Features

Chrysalis:
  • For vertical or horizontal lifting and lowering - includes lifting bridle
  • Integral support stirrup for vertical lifting
  • SWL of 260kg, based on a Factor of Safety of 10:1. Tested with 4m fall, mass of 140 kg
  • Integral casualty restraint harness
  • Configured for rapid deployment
  • High abrasion resistant and waterproof outer case
  • Low profile side handles aid handling with minimal risk of snagging
  • Spine board compatible
  • Removable interior stiffening sheet
  • Minimal casualty movement needed to fit harness - retained completely flat during storage
  • Head restraint system
  • Six straps to secure casualty
  • All components machine washable
  • Supplied rolled in KARI 50L transport/storage bag
ProSeal storage system
  • Multiple protective layers ensure perfect storage conditions
  • Fully protected against damage – durable barrier bag and outer protective storage container
  • Supremely simple inspection – quick and easy process without removing kit from site

Specifications

Material: Polyamide /polyester load bearing elements with PVC cover and plastic fittings. Stainless steel buckles.
EN Mass Test: 125kg with 4m fall
Loading: For static vertical and horizontal lifting, SWL of 260kg, based on a Factor of Safety of 10:1.
Weight: 8.65 kg
Conformity: MDD 93/42/EEC as amended by Directive 2007/47/EC (Class 1 Medical Device)
