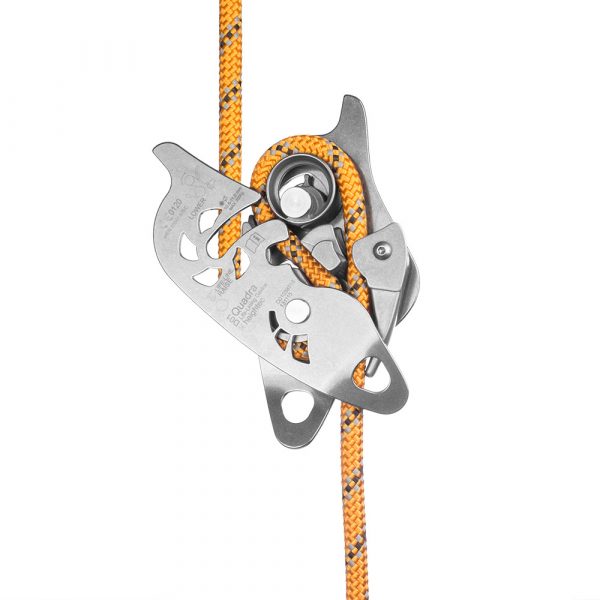

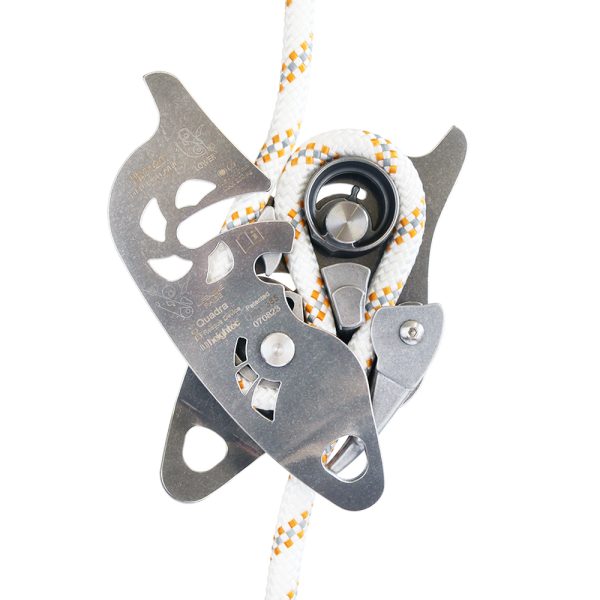

QUADRA multi-function rescue device – stainless steel

Approved for use in the UK only.

The QUADRA rope device is used in rescue systems and has 4 different functions – life-lining, lowering, hauling and descending.

Learn More

QUADRA rescue life-lining and back-up device has four different functions:

  • Life-lining – controlling a safety line attached to a rescuer
  • Lowering – remotely controlling a load
  • Hauling – self-locking load raising
  • Descending – self-lowering of operator

Operator is able to change from one function to another instantly, while rope is loaded, and without adding additional components.

Patented double-braking mechanism increases friction under heavy loading and reduces rate at which friction is released.

Folding handle design prevents accidental operation.

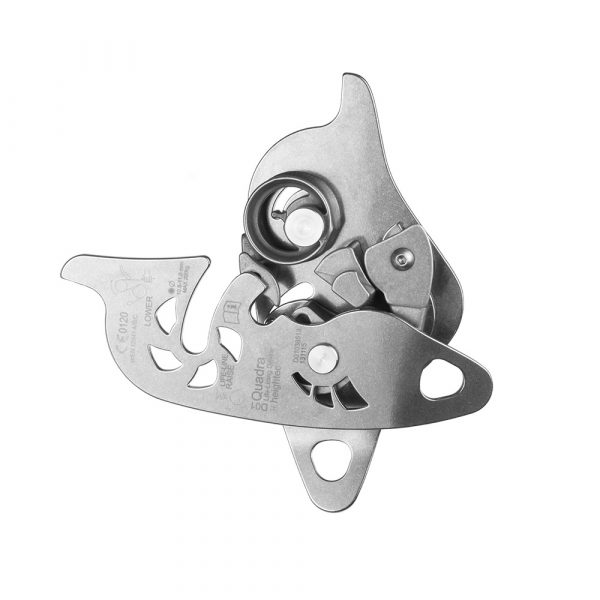

Inspection and cleaning is simple as all component parts of device are visible and accessible.

QUADRA is rated at 200 kg making it suitable for most rescue applications. It also has capacity to arrest a 250 kg load at Fall Factor 1/3 without damage to rope, retaining full function. All load bearing components are stainless steel for corrosion resistance and reduced spark hazard.

It has been developed with, and is extensively used by, UK Fire Services and other industrial rescue teams. heightec has a dedicated range of rescue products for use by fire services and rescue teams:

RescuePack Reach – Suspended Person Rescue System – the most simple yet versatile award-winning self-contained fall arrest rescue system available. Designed to recover a suspended person from almost any fall protection system by lowering or lifting. RescuePack delivers a mechanical advantage for lifting of around 3:1 by the use of the HURRICANE. Rope device can pay rope out but lock when a load is applied.

RescuePack Reach – ProSeal the ultimate storage solution for mission-critical equipment. Hermetically sealed, giving a 20 year lifespan with supremely simple inspection process.

RescuePack Pro Technical rescue system for fire service and professional rescue teams – multi function with lowering, raising and rescuer safety capabilities.

Patented GB 2 367 048.

Commodity Code: 7326909890

Country of Origin: UK

NB: Approved for use in the UK only.

Made in Britain Horizontal logo - Colour

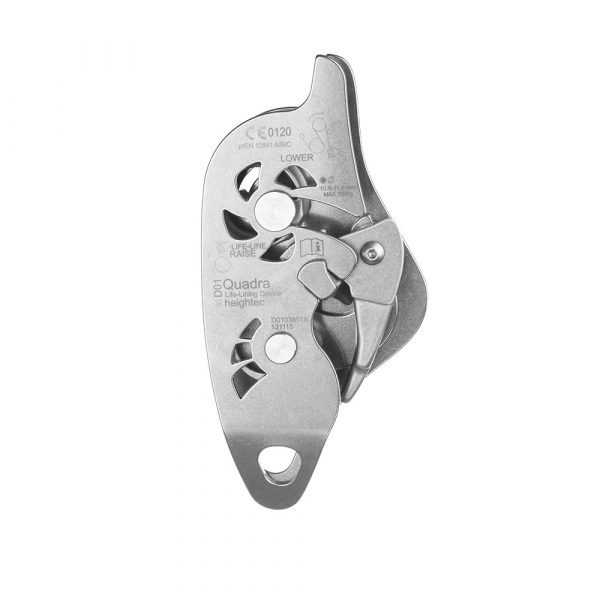

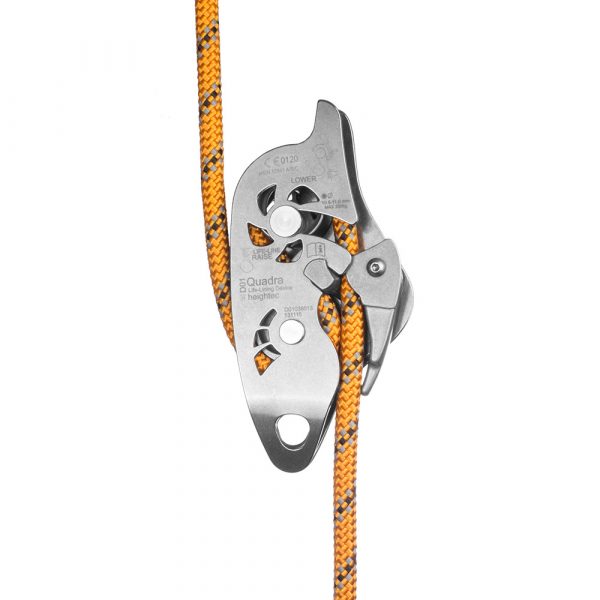

D01 Steel Quadra rescue device

Features

  • Multi-function, can change between functions under load
  • Double-braking mechanism
  • Folding handle
  • All component parts visible
  • High load capacity (200kg)
  • Stainless steel construction

Specifications

Sizing: For 10.5mm - 11mm rope
Material: Aluminium and stainless steel
EN Mass Test: 200kg
Loading: 200 kg SWL
Weight: 0.723 kg
Conformity: prEN 12841(A,B,C) - FOR UK USE ONLY
