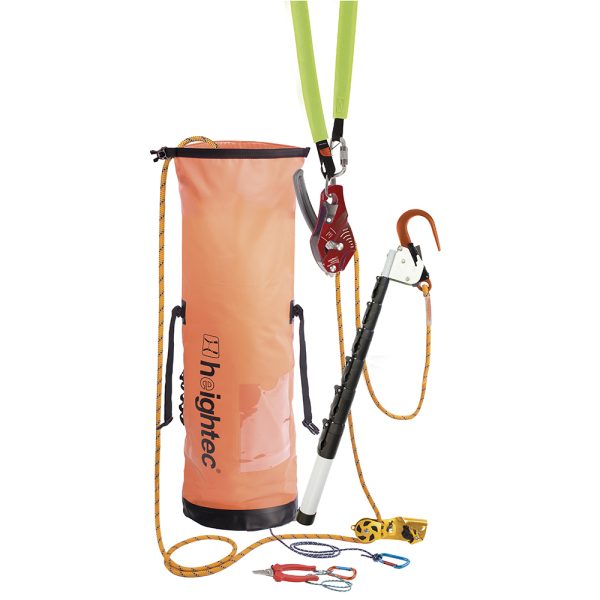

The RescuePack Reach is the most simple yet versatile award winning self contained dedicated fall arrest rescue system available. Designed for vertical rescues of a suspended person from almost any fall protection system by lowering or lifting.
RescuePack Reach delivers a mechanical advantage for lifting of around 3:1 by the use of the stainless steel HURRICANE. Rope device can pay rope out but lock when a load is applied. Hook can attach to D ring or harness shoulder strap if needed.

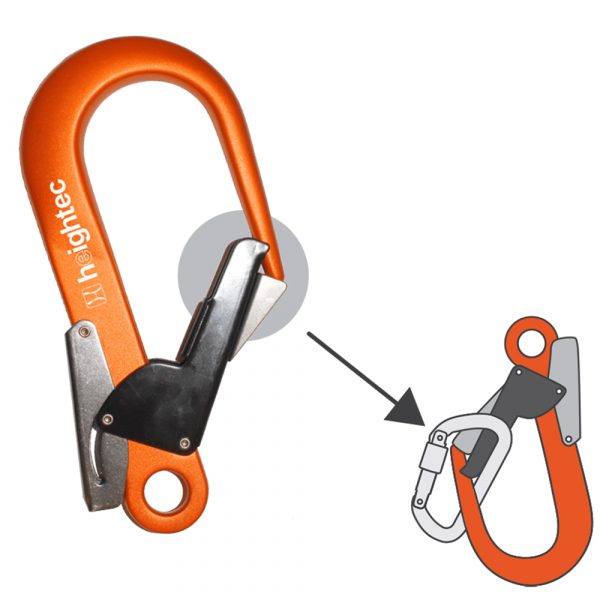

The RescuePack Reach contains the Xtendr compact locking extendable rescue reach pole with large attachment hook. The telescopic pole extends for 3.7 m to reach a casualty on an extended energy absorbing lanyard. The modified scaffold hook features a smooth modified gate profile to prevent snagging and ensures easy attachment to the casualty – essential in cases of suspected suspension intolerance when speed is vital. This method of casualty attachment does not rely on being able to clip a specific attachment ring on the casualty. High strength, heavy duty design is rigid when fully extended, with sturdy locking mechanism and unique quick release bracket. Non-conductive.
This fall arrest rescue system can be used in very constricted space and does not need anchor points to be placed in specific positions.
RescuePack Reach contents include:
QUADRA rescue life-lining and back-up device has four different functions:
- Life-lining – controlling a safety line attached to a rescuer
- Lowering – remotely controlling a load
- Hauling – self-locking load raising
- Descending – self lowering of operator
HURRICANE pulley mechanism can be placed on the rope at any point for recovery.
- Unique, patented product available only from heightec.
- Alloy locking pulley for reliability and durability.
- Special cam X-Cam design is specifically for industrial or professional use and offers immediate purchase on the rope whilst minimising the potential for rope damage.
- The simplicity and compactness of the HURRICANE compared with other traditional systems is a major advantage in allowing non-experts to achieve the lifting of a suspended casualty.
- It is the only product to allow intuitive assembly of such a system. It can be attached at any point along the rope, even if it is loaded and the lifting system can be remote from the casualty, reducing the amount of rope required by 70%.
Xtendr compact locking extendable rescue reach pole.
- For attachment of rescue systems to a suspended person hanging after a fall
- The new and improved design makes the collapsed length shorter and the reach longer, allowing for better storage.
- Designed to accommodate our large, specially modified attachment hook (CH01AM)
- Pole full extended length: 337cm
The Rescue system comes packed in the KARI 50 (B50) – from heightec’s KARI range of tough, waterproof kit bags for storage and hauling. Designed specifically for work at height and rescue, the KARI transport bag range brings all the features of traditional dry bags but with increased protection. Different styles available for different functions – personal kits, rescue systems, rope, tool bags etc. View the full range here.
Core Components:
- HURRICANE Pulley
- QUADRA rope device
- Xtendr reach pole
- Non-release hook
- Anchor sling, protected
- Connectors
- Rescue Shears
- Rope, 25 m or 50 m
- KARI 50 transport bag – WLL 18 kg, with shoulder straps and roll top closure
Available Options:
- WK32 RescuePack Reach 25m, Unassembled
- WK32A RescuePack Reach 25m, Pre-assembled
- WK32050 RescuePack Reach 50m, Unassembled
- WK32050A RescuePack Reach 50m, Pre-assembled
Also available:
RescuePack Reach – ProSeal the ultimate storage solution for mission-critical equipment. Hermetically sealed giving a 20 year lifespan with supremely simple inspection process.
Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.
Commodity Code: N/A
Country of Origin: UK
