RescuePack Reach (RescueHauler) with ProSeal – fall arrest rescue system

Fall arrest rescue system featuring RescueHauler advanced rope controller

Supplied in ProSeal 20 year storage system. Suspended person rescue system

Protects against degradation prolonging the life of the equipment. Gives a maximum 20 year lifespan and enables a supremely simple inspection process.

Learn More

RescuePack Reach (RescueHauler) with ProSeal is the simple yet versatile award winning self contained dedicated fall arrest rescue system available. This award winning system was designed for vertical rescue of a suspended person from almost any fall protection system by lowering or lifting. Supplied in ProSeal storage solution protects against degradation prolonging the life of the equipment up to 20 years and offers a supremely simple method of inspection.

Features the NEW RescueHauler rope controller is a simple and intuitive rescue device optimised for rescue and lifting / lowering operations.

The RescueHauler has an auto-locking function when the handle is released and a progressive secondary brake if the handle is pulled sharply in panic. This mechanism is typically more intuitive for users, than devices that trip out and require resetting.

RescuePack Reach (RescueHauler) with ProSeal delivers a mechanical advantage for lifting of around 3:1 by the use of the stainless steel HURRICANE. Rope device can pay rope out but lock when a load is applied. Hook can attach to D ring or harness shoulder strap if needed.

The RescuePack Reach contains the Xtendr compact locking extendable rescue reach pole with large attachment hook. The telescopic pole extends for 3.7 m to reach a casualty on an extended energy absorbing lanyard. The modified scaffold hook features a smooth modified gate profile to prevent snagging and ensures easy attachment to the casualty – essential in cases of suspected suspension intolerance when speed is vital. This method of casualty attachment does not rely on being able to clip a specific attachment ring on the casualty. High strength, heavy duty design is rigid when fully extended, with sturdy locking mechanism and unique quick release bracket. Non-conductive.

This fall arrest rescue system can be used in very constricted space and does not need anchor points to be placed in specific positions.

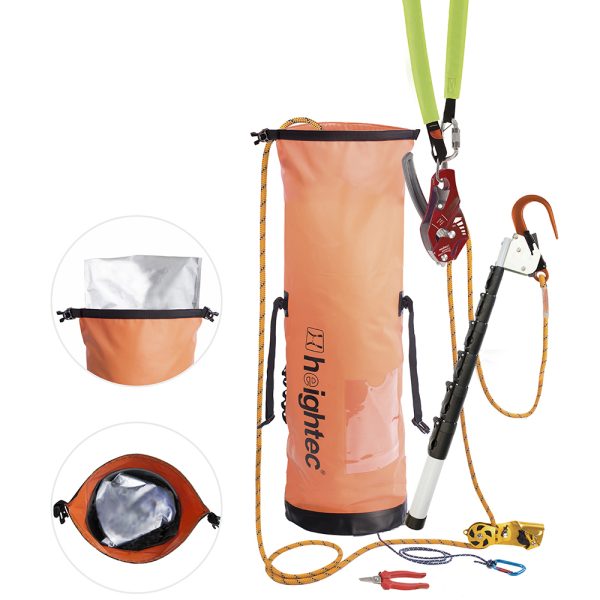

RescuePack Reach (RescueHauler) with ProSeal contents include:

RescueHauler advanced rope controller with high load rating, optimised for rescue & hauling applications

  • Simple – Single cam design provides precision control when lowering
  • Safe – The dual safety braking function increases reliability and safety
  • Tough – Designed for extended use in aggressive environments

HURRICANE pulley mechanism can be placed on the rope at any point for recovery:

  • Unique, patented product available only from heightec.
  • Alloy locking pulley for reliability and durability.
  • Special cam X-Cam design is specifically for industrial or professional use and offers immediate purchase on the rope whilst minimising the potential for rope damage.
  • The simplicity and compactness of the HURRICANE compared with other traditional systems is a major advantage in allowing non-experts to achieve the lifting of a suspended casualty.
  • It is the only product to allow intuitive assembly of such a system. It can be attached at any point along the rope, even if it is loaded and the lifting system can be remote from the casualty, reducing the amount of rope required by 70%.

Xtendr compact locking extendable rescue reach pole.

  • For attachment of rescue systems to a suspended person hanging after a fall
  • The new and improved design makes the collapsed length shorter and the reach longer, allowing for better storage.
  • Designed to accommodate our large, specially modified attachment hook (CH01AM)
  • Pole full extended length: 337cm

The Rescue system comes packed in the KARI 50 (B50) – from heightec’s KARI range of tough, waterproof kit bags for storage and hauling. Designed specifically for work at height and rescue, the KARI transport bag range brings all the features of traditional dry bags but with increased protection.  Different styles available for different functions – personal kits, rescue systems, rope, tool bags etc. View the full range here.

PROSEAL

ProSeal is a simple, tough storage method for equipment that needs robust protection during long term storage, to guarantee the quality and functionality of rescue and evacuation equipment.

  • Total protection
  • Guaranteed functionality
  • 20 year lifespan
  • Complete peace of mind

ProSeal is ideally suited for equipment that requires a robust method of long term storage whilst maintaining the condition of the equipment.

  • Multiple protective layers ensure perfect storage conditions
  • Fully protected against damage – durable barrier bag and outer protective storage container
  • Supremely simple inspection – quick and easy process without removing kit from site

Protects against degradation prolonging the life of the equipment.

  ProSeal Inspection Process



Core Components:

  • ProSeal storage solution
  • HURRICANE Pulley
  • RescueHauler advanced rope controller
  • Xtendr reach pole
  • and non-release hook
  • Anchor sling, protected
  • Connectors
  • Rescue Shears
  • Rope, 25 m or 50 m
  • KARI 50 transport bag – WLL 18 kg, with shoulder straps and roll top closure

Available Options:

  • WK31025S RescuePack Reach 25m, Pre-assembled
  • WK31050S RescuePack Reach 50m, Pre-assembled

Also available:

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

Commodity Code: N/A

Country of Origin: UK

Made in Britain Horizontal logo - Colour

Features

RescuePack Reach system:
  • Does not require the rescuer to be part of the system
  • Able to raise a casualty over an edge or hand rail
  • Requires only one quarter of the rope used by competing designs
  • KARI 50 Transport Bag, 50L, WLL 18 kg
  • Telescopic pole can reach to the length of 3.5 m
ProSeal storage system:
  • Multiple protective layers ensure perfect storage conditions
  • Fully protected against damage – durable barrier bag and outer protective storage container
  • Supremely simple inspection – quick and easy process without removing kit from site

Specifications

Sizing: 25m or 50m
Material: Various
Loading: 200 kg
Weight: 8.5 kg
Conformity: Various EN Approvals
