Transfer Lanyard Connector

Transfer connection lanyard predominantly for use on offshore wind turbines.

Learn More

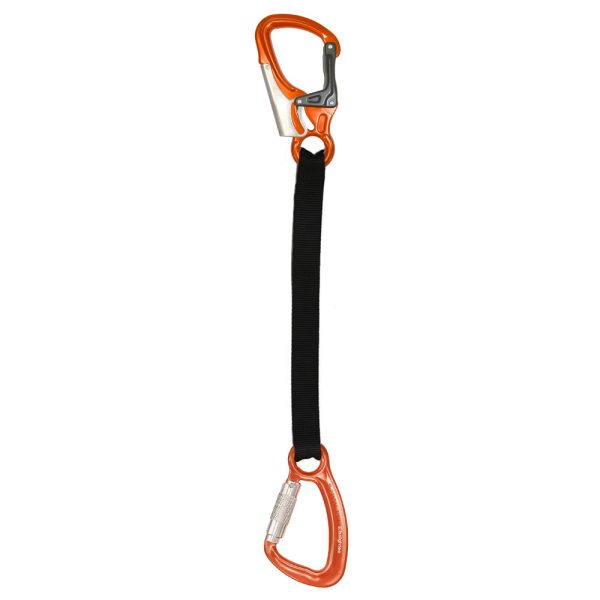

Transfer Lanyard Connector

Transfer lanyard connector has been designed for use in offshore wind for transferring from/to vessel and turbine. Designed for ease of connection to access/egress systems and can also be used for fast ladder positioning.

The 260mm round sewn nylon sling lanyard is supplied with 2 captivated karabiners, one at each end and has a MBL of 22kN. The triple lock connector is typically used at the harness end and the double action is used for attaching to the fall protection system or to sling around ladder rung back to harness.

The transfer lanyard connector is suitable for work restraint, work positioning and for fall arrest if an additional energy absorber (6kN max), such as an EN355 energy absorber is used.

Connectors:

1 x CH11 Karabiner. The double action gate is self closing and locking and allows one handed operation. The captive eye keeps the loading close to the spine (thus reducing any loss in strength).
Major axis – gate open 12kN
Major axis 28kN
Minor axis 9kN
Gate opening: 23mm
Overall size: L 141mm, W 72mm

1 x CKA61 Karabiner, aluminium, captive eye, triple lock
Captive eye for permanent (e.g. lanyards) or semi-permanent assemblies. The captive eye keeps the loading close to the spine (thus reducing any loss in strength).
The triple action gate is self closing and locking and allows one handed operation. Opening the gate requires 3 separate actions, virtually eliminating the risk of accidental opening.
Major axis 28kN
Gate Opening: 22mm
Overall Size: L 130mm, W 84mm, Ø 16mm

You may also like:

  • H34Q2 VORTEX wind turbine harness with steel attachment point
  • H34Q VORTEX wind turbine harness with alloy attachment point
  • H11Q PHOENIX Features new jacket, quick connect leg strap buckles with easy adjustment shoulder strap buckles – Standard Size.

Colours may vary from image shown

Commodity Code: 7616999099

Country of Origin: UK

Made in Britain Horizontal logo - Colour

Features

  • Captive eye karabiners
  • Double action safety
  • Single handed operation
  • Automatic locking

Specifications

Sizing: 520mm assembled
Material: Aluminium alloy, Nylon webbing
EN Mass Test: 100kg
Loading: 1 person
Weight: 0.27 kg
Conformity: Sling EN354, EN566, EN795(B), Karabiners EN362 A/T
