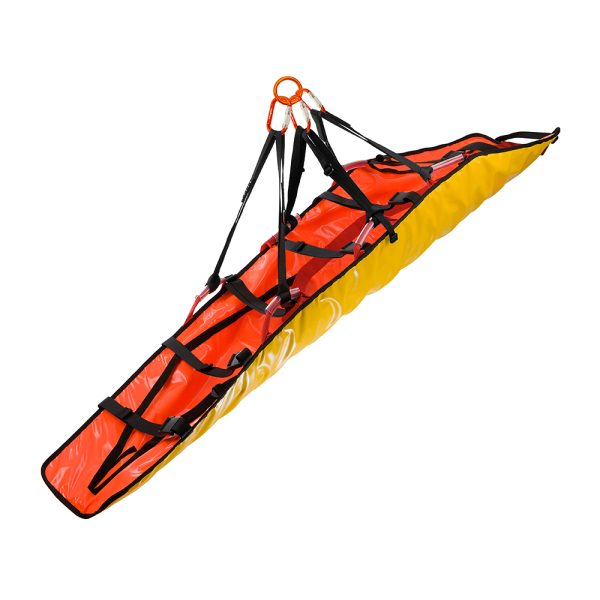

CHRYSALIS Rescue Stretcher

Versatile rescue roll stretcher with unique integral casualty harness. For both horizontal and vertical lifting for rescue from a wide range of confined, exposed or high locations.

Learn More

The CHRYSALIS rescue stretcher can be used for both horizontal and vertical lifting for rescue from a wide range of confined, exposed or high locations.

Compatible with spine boards placed on or within the stretcher.

The integral body harness conforms to the dynamic performance requirements of EN 361 (full body fall arrest harness; unique to the CHRYSALIS). With 140 kg mass.

Made from reinforced coated fabric which gives unbeatable weight to strength. The full body casualty harness provides an unrivalled combination of fit, comfort and strength. Quick buckle system means using the harness is fast and simple.

Tested with 4 m fall with a test mass of 140 kg. For static vertical and horizontal lifting, SWL of 260 kg, based on a Factor of Safety of 10:1.

The casualty rescue stretcher has six patient restraint straps  with quick connect buckles to ensure the casualty is kept secure as well as one head restraint system.  The integral harness is fitted with two quick connect buckles and can be adjusted with one hand.  The retaining straps are aligned for rapid fastening in an emergency situation.

Lays flat to minimise movement of casualty when fitting. Adjustable foot stirrup and head strap can be fitted once the casualty is secure.

High abrasion resistance of the outer case and the high visibility design ensures ultimate protection of the casualty. The bright colours aid use in low light conditions. The tough fabric construction resists abrasion and water ingress and can be washed down after use for infection control.

The plastic internal sheet can be removed to enable the stretcher to be machine washed.

Once employed the integral harness is always connected to the lifting points whether in horizontal or vertical lift for complete casualty security.

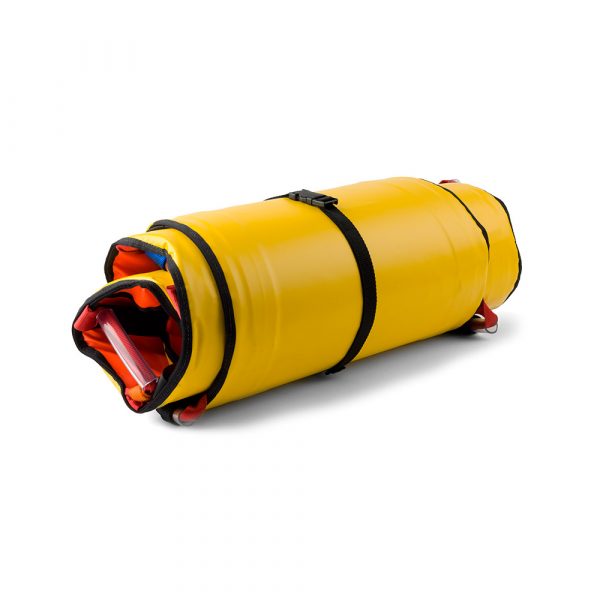

Supplied with bridle and KARI 50 durable waterproof PVC storage bag. The stretcher rolls up for compact storage and easy of transportation.

Metal lifting bridle attachment enables rescuer connection without risk of bridle damage.

Replacement Stretcher Bridle available to purchase separately.

Product registered with the UK Competent Authority, MHRA, Class 1 Medical Device.

Also available with:

ProSeal Storage System – the ultimate storage solution for mission-critical equipment. Hermetically sealed giving a 20 year lifespan with supremely simple inspection process. The first and only sealed rescue stretcher.

You may also be interested in:

PLANA Spine Board for additional stretcher rigidity and protection or casualty immobilisation.

TELSON Drag Stretcher (MS05) 3/4 length steel rescue stretcher for confined space

QUADPOD (ATR4) high strength portable anchors

A Critical Injury Pack is now specified as part of the recommended first aid provision for all high risk environments under the Mast & Tower Safety Group (MATS) First Aid For Working At Height Guidance (GN-009).

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

Commodity Code: 6307909899

For both horizontal and vertical lifting for rescue from a wide range of confined, exposed or high locations.

Features

  • Tested with 4m fall, mass of 140 kg
  • For vertical or horizontal lifting and lowering
  • SWL of 260kg, based on a Factor of Safety of 10:1
  • Integral casualty restraint harness
  • Configured for rapid deployment
  • High visibility
  • High abrasion resistant and waterproof outer case
  • Low profile side handles aid handling with minimal risk of snagging
  • Spine board compatible
  • Comes rolled up into KARI 50L storage bag
  • Stretcher comes complete with lifting bridle and protective bag
  • Has 6 patient restraint straps to keep the casualty secure
  • 1 head restraint system
  • Integral support stirrup for vertical lifting
  • Harness retained completely flat during storage
  • Minimal movement needed by casualty during fitting of harness
  • Removable interior stiffening sheet
  • All components machine washable

Specifications

Material: Polyamide /polyester load bearing elements with PVC cover and plastic fittings. Stainless steel buckles.
EN Mass Test: 125kg with 4m fall
Loading: For static vertical and horizontal lifting, SWL of 260kg, based on a Factor of Safety of 10:1.
Weight: 8.65 kg
Conformity: MDD 93/42/EEC as amended by Directive 2007/47/EC (Class 1 Medical Device)
