Lifting & Lowering Kit – SWL 100kg

Simple lifting and lowering kit for small to medium loads.

Learn More

Lifting & Lowering Kit designed to lift small to medium size loads and is ideally suited to the renewables, construction and telecoms industries.

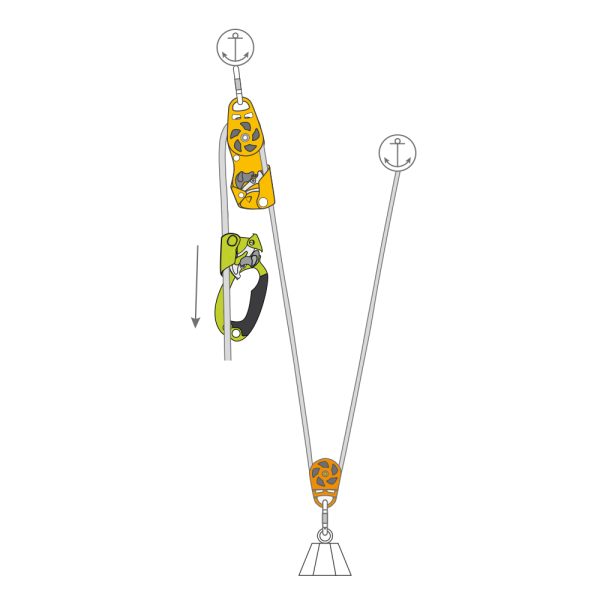

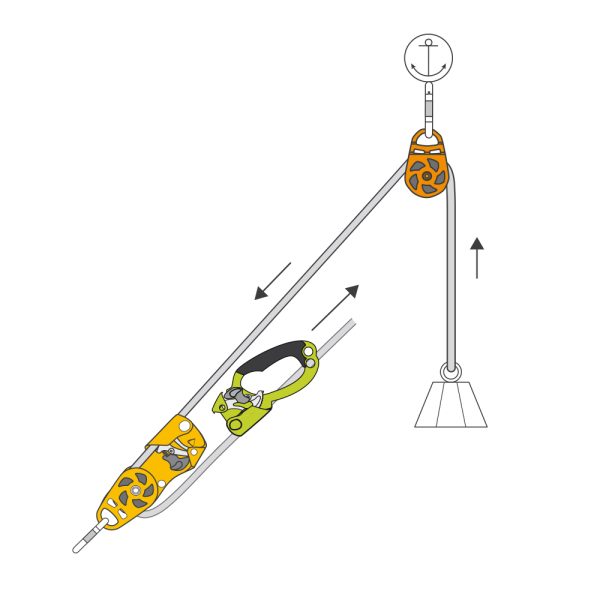

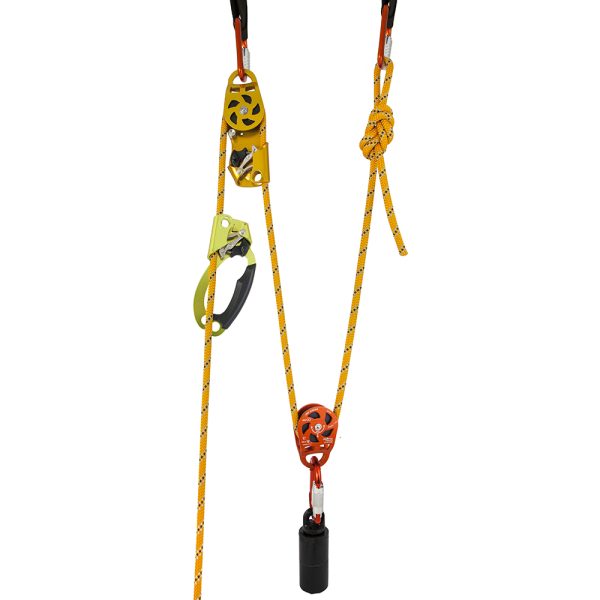

The system can be rigged for basic progress capture using the CYCLONE locking pulley or for more mechanical advantage using the pulley as a “V” rig (2:1) to increase the load range. Lowering is achieved by manual rope control whilst releasing the progress lock.

The Lifting & Lowering Kit contains the following specialist products:

CYCLONE alloy hauling pulley has been specifically designed for technicians to aid hauling of equipment and materials.

PULSAR handled rope grab

Alloy rescue pulley is a lightweight, compact fixed cheek pulley for general or personal use.

Comes complete with our versatile KARI transport bag. heightec’s KARI bag range is tough, waterproof and suitable for storage and hauling. Designed specifically for work at height and rescue, the KARI transport bag range brings all the features of traditional dry bags but with increased protection. Different styles available for different functions – personal kits, rescue systems, rope, tool bags etc. View the full range here.

Core components:

Lengths available:

NB: Not certified for lifting persons.

Commodity Code: N/A

Country of Origin: UK

Also available:

Advanced Lifting and Lowering Kit (RescueHauler) – a comprehensive kit allowing multiple configurations for lifting, lowering and directing loads. Features the NEW RescueHauler rope control device. Provides a hands free progress capture (locking), and friction control (lowering) function and can be changed from lift to lower whilst under load.

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.

DUON Air helmet with dual conformity and 7 points of adjustment, providing exceptional fit, stability and comfort.

Made in Britain Horizontal logo - Colour

Specifically design to aid hauling of equipment


  • Stainless steel locking pulley device
  • Additional lifting or deviation pulley
  • Durable and corrosion resistant
  • Ideal for offshore use
  • Protected sling
  • Containment bag


Sizing: Lengths available: 25m, 50m or 100m
Loading: 100kg SWL
Weight: 10.5 kg
Conformity: Various EN Approvals
