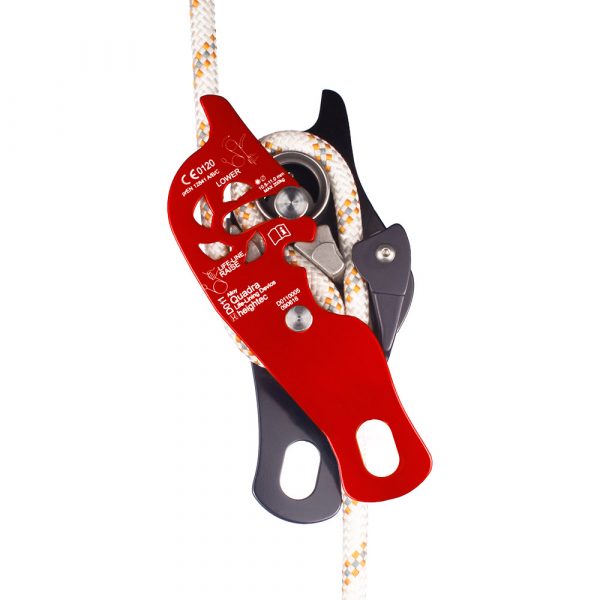

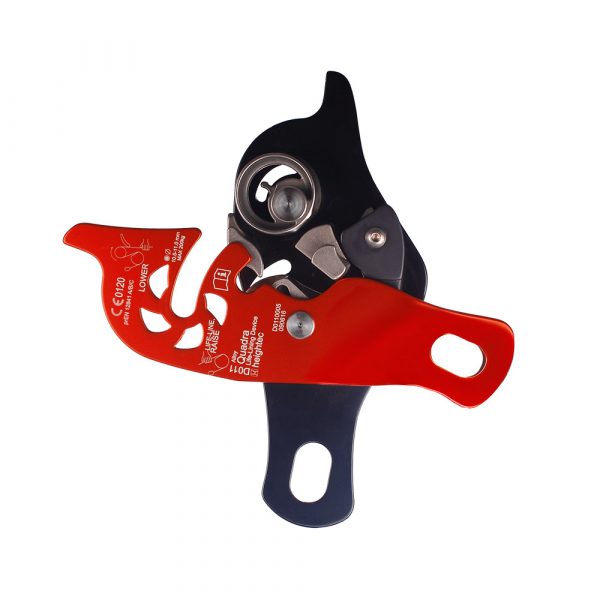

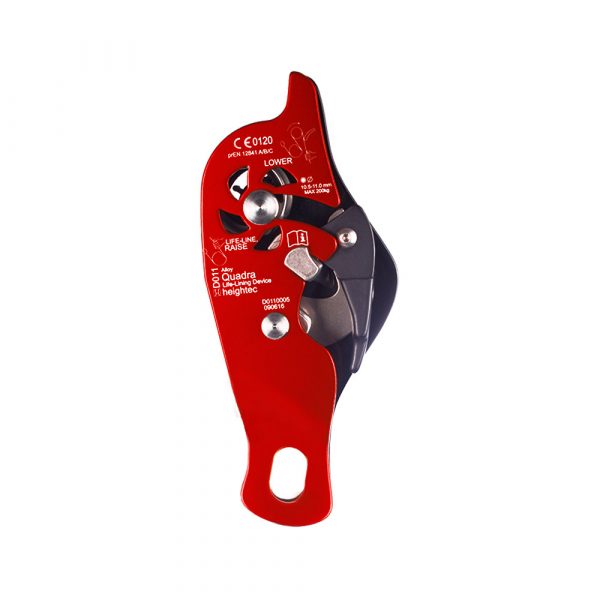

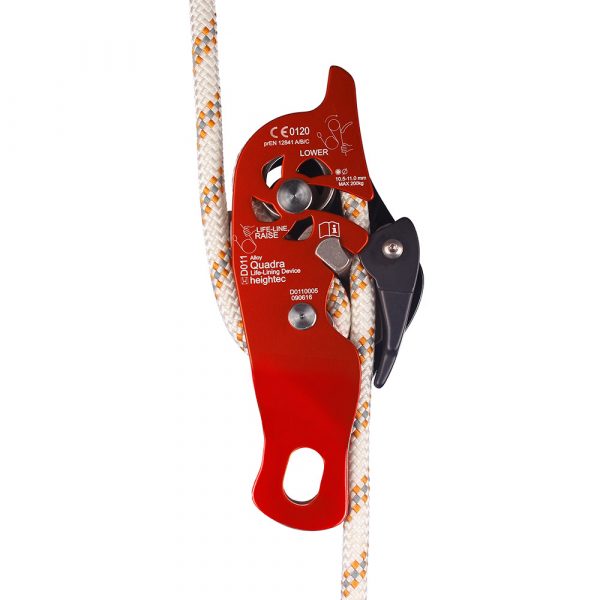

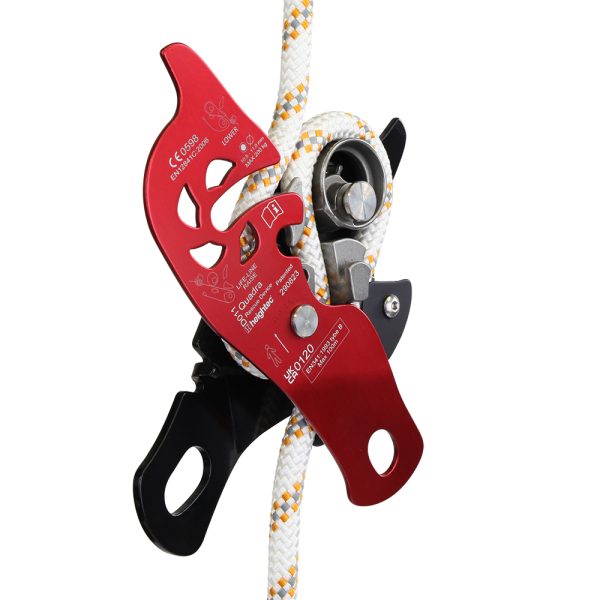

QUADRA rescue device

The QUADRA rope device is used in rescue systems and has four different functions: life-lining, lowering, hauling and descending.

Learn More

QUADRA rescue device with four different functions:

  • Life-lining – controlling a safety line attached to a rescuer
  • Lowering – remotely controlling a load
  • Hauling – self-locking load raising
  • Descending – self-lowering of operator

Operator is able to change from one function to another instantly – while rope is loaded and without adding additional components.

Patented double-braking mechanism increases friction under heavy loading and reduces rate at which friction is released.

Inspection and cleaning is simple as all component parts of device are visible and accessible.

QUADRA rescue device is rated at 200 kg making it suitable for most rescue applications. It also has capacity to arrest a 250 kg load at Fall Factor 1/3 without damage to rope, retaining full function. All load bearing components are stainless steel for corrosion resistance and reduced spark hazard.

Updated versions have improved threading and durability without changing performance or method of performance.

The QUADRA can only be threaded with the connector removed, which helps to prevent tampering.

It has been developed with, and is extensively used by, UK Fire Services and other industrial rescue teams.

Core component of:

RescuePack Reach – Suspended Person Rescue System – the most simple yet versatile award-winning self-contained fall arrest rescue system available. Designed to recover a suspended person from almost any fall protection system by lowering or lifting. RescuePack delivers a mechanical advantage for lifting of around 3:1 by the use of the HURRICANE. Rope device can pay rope out but lock when a load is applied.

RescuePack Reach – ProSeal the ultimate storage solution for mission-critical equipment. Hermetically sealed, giving a 20 year lifespan with supremely simple inspection process.

Patented GB 2 367 048.

QUADRA stainless steel version available for increased corrosion resistance (D01)

Commodity Code: 7616999099

Country of Origin: UK

Made in Britain Horizontal logo - Colour

QUADRA rescue device


  • Multi-function, can change between functions under load
  • Double-braking mechanism
  • All component parts visible
  • High load capacity
  • Lightweight alloy construction


Sizing: For 10.5mm - 11mm rope
Material: Aluminium
EN Mass Test: 200 kg
Loading: 200 kg SWL
Weight: 0.35 kg
Conformity: EN 12841 C
